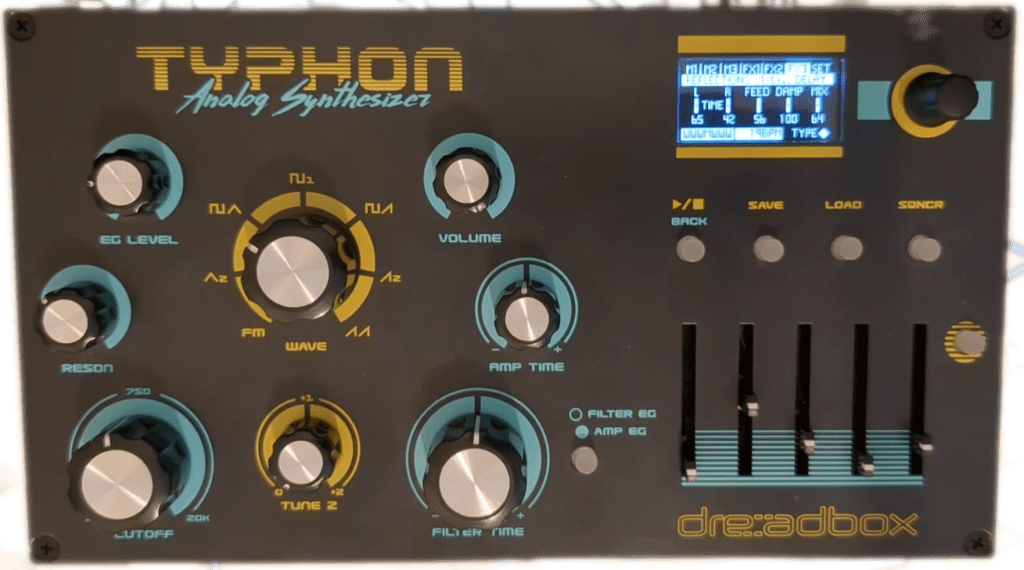

The Dreadbox Typhon is a powerful and versatile analog synthesizer that has gained popularity not only for its rich sound but also for its impressive built-in effects. One of the standout features of the Typhon is its ability to function as an external FX processor, allowing you to run other audio sources through its high-quality effects. In this blog post, we’ll explore how I set up and use the Dreadbox Typhon as an external FX processor, to beef up the sounds of other DAWless gear.
Why Use the Dreadbox Typhon as an External FX Processor?
The Typhon comes equipped with a range of effects designed by Sinevibes, including reverb, delay, distortion, and modulation effects. These effects are not only high-quality but also highly customizable, making the Typhon a valuable tool for adding depth and character to any audio source. Whether you’re looking to enhance a vocal track, add warmth to a guitar recording, or create unique soundscapes, the Typhon’s effects can elevate your sound.
Setting Up the Typhon as an External FX Processor
- Connections: To use the Typhon as an external FX processor, you’ll need to connect the audio output of your source to the audio input of the Typhon. The Typhon features a stereo input, so you can process stereo signals if needed. Instead of connecting it directly to the synth, I also found it was nice to put into an AUX-SEND chain on my mixer, so I could apply the effects to any instrument.
- Audio Routing: Once connected, you’ll need to ensure that the Typhon is set to process external audio. The easiest way to do this is use the default Preset 1 in Bank C which is configured specifically for this. If it is not setup you will have to edit a patch to keep the VCA open so that the signal can pass through continuously.
- Effect Selection: With the external audio input enabled, you can now select and tweak the effects you want to apply as you would do normally.
Make your own FX preset
- On SET page, adjust every parameter to 0 except of VCA LVL at 100
- Now we need to keep the VCA constantly open. Go to any modulator and set it at “STEP” mode. Then setup:
# – 1
Step – 1
LVL – 100
DEST – VCA
LVL – 100
Creative Ideas
- Guitars: I tried out using the Typhon with a guitar, but to be honest prefer using dedicated guitar pedals for this.
- Drum machine: In the video above I used the distortion with the Roland T-8 drums to create a grimy sound.
- Synths: I love the reverb and delay on the Typhon, I am a sucker for ping pong delay, so that is my goto FX for applying to synths!
Tips and Tricks
- Modulation: Experiment with the Typhon’s modulation capabilities to create evolving and dynamic effects. You can use LFOs (Low-Frequency Oscillators) to modulate parameters like delay time or reverb depth, adding movement to your sounds.
- Preset Management: Take advantage of the Typhon’s preset management system to save your favorite effect settings. This allows you to quickly recall complex effect chains for different projects.
- External Control: The Typhon supports MIDI and CV (Control Voltage) inputs, allowing you to control its parameters externally. This can be particularly useful for live performances or integrating the Typhon into a larger modular setup.
